Spool Stretch Packaging

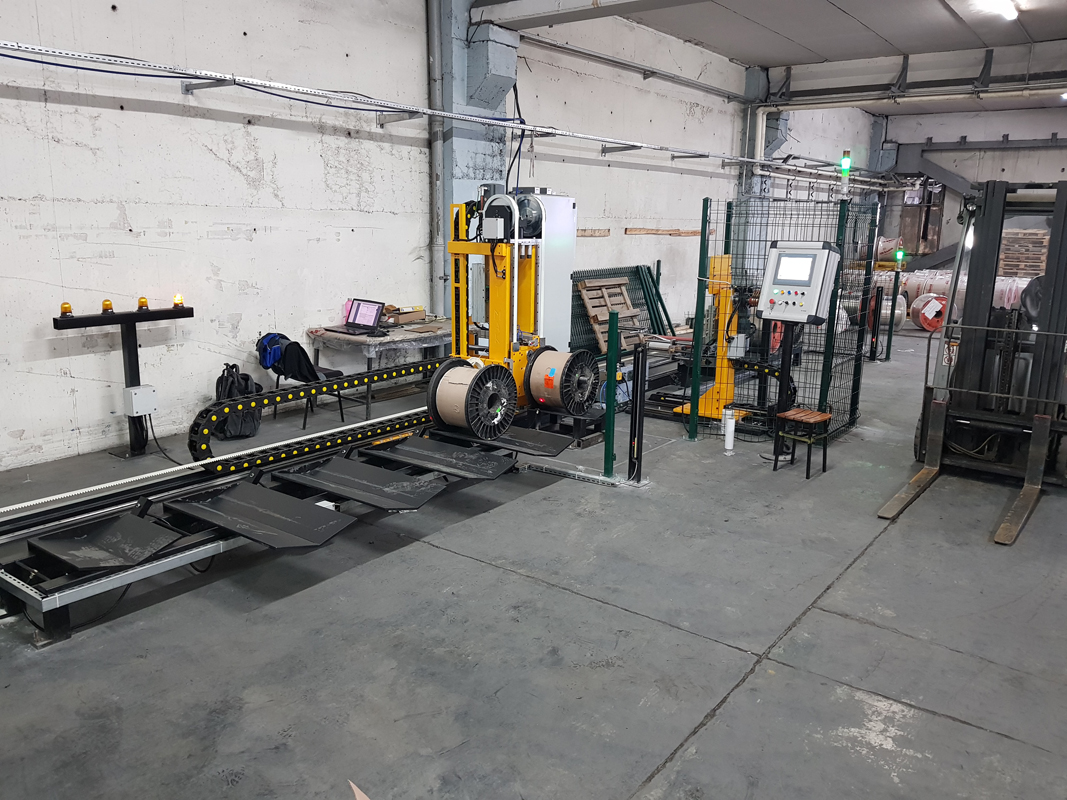

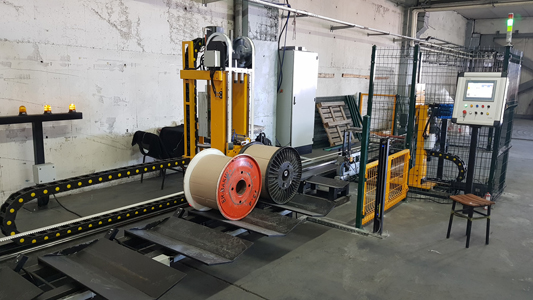

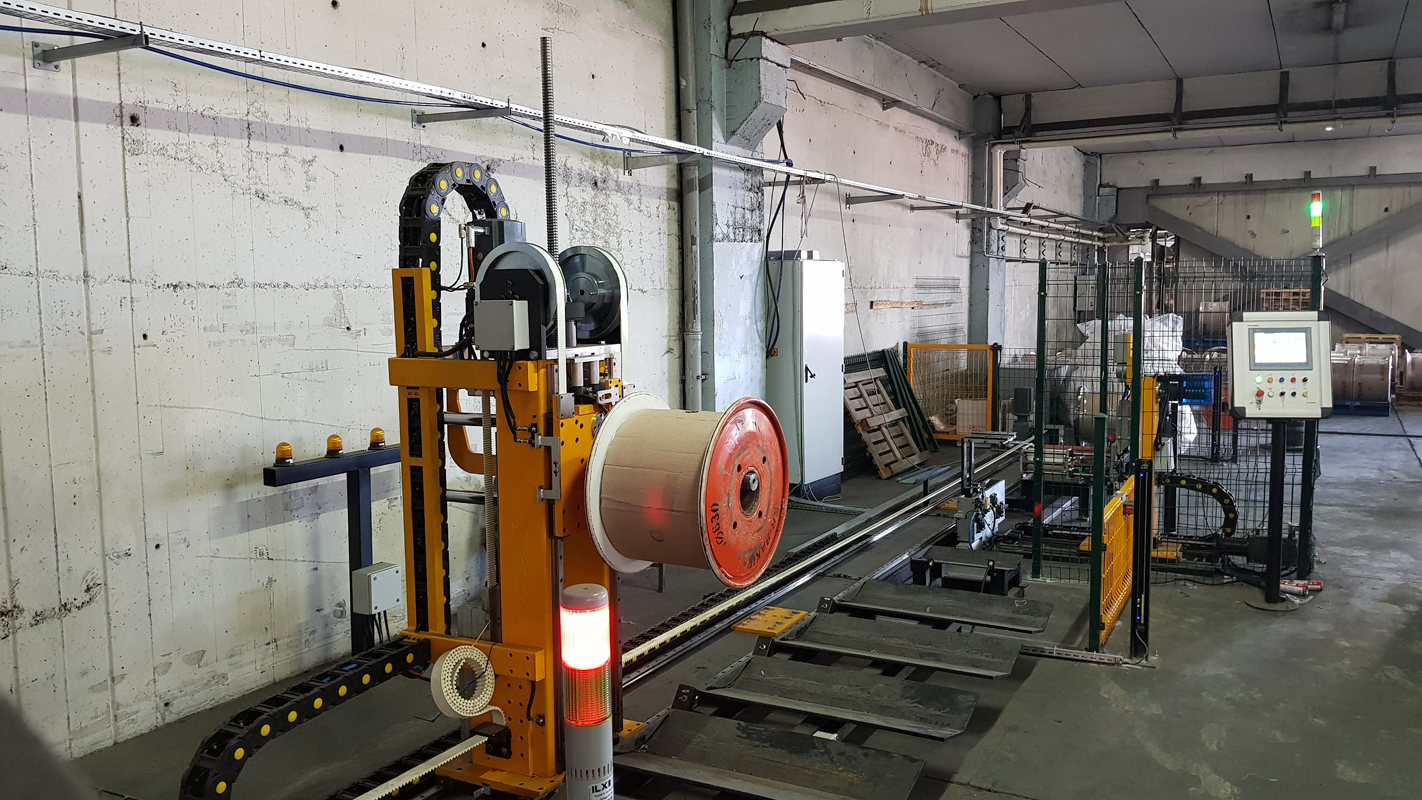

THE AUTOMATIC MACHINE LINE
The Spool STRETCH Packaging Machine Line has been developed for wire and cable manufacturers. This process aims to highlight the quality. This is the last part of wire and cable production.
TECHNICAL Specifications
Machine Line : Fully Automatically
Operatör needs : Only 1 staff
Usable Roller Dimensions : Ø400 – Ø 560 – Ø630 or Ø800 (Automatic recognition)
Spool Types : Wooden – plastic – steel (Automatic recognition)
Maximum Weight : 650kg or 1300kg (Automatically define the weight of spool)
Appropriate/inappropriate : Full Automatically seperates suitable or non-suitable spools
Working Capacity : 40 sec. cycle (machine cycle time excluding system confirmations waiting times)
Stretching : Fully automatic
Label Sticking : Automatic (Optional)
Entry Stock Area : 4 Reel Capacity Stock Area (Changeable)
Exit Stock Area : 4 Reel Capacity Stock Area (Changeable)
Shrink Nylon Dimensions : 400mm – 600mm (Changeable)
Plc Control : Siemens S7-1500 Series
Integrated Operatıons : SAP etc.
HOW DOES IT WORKS

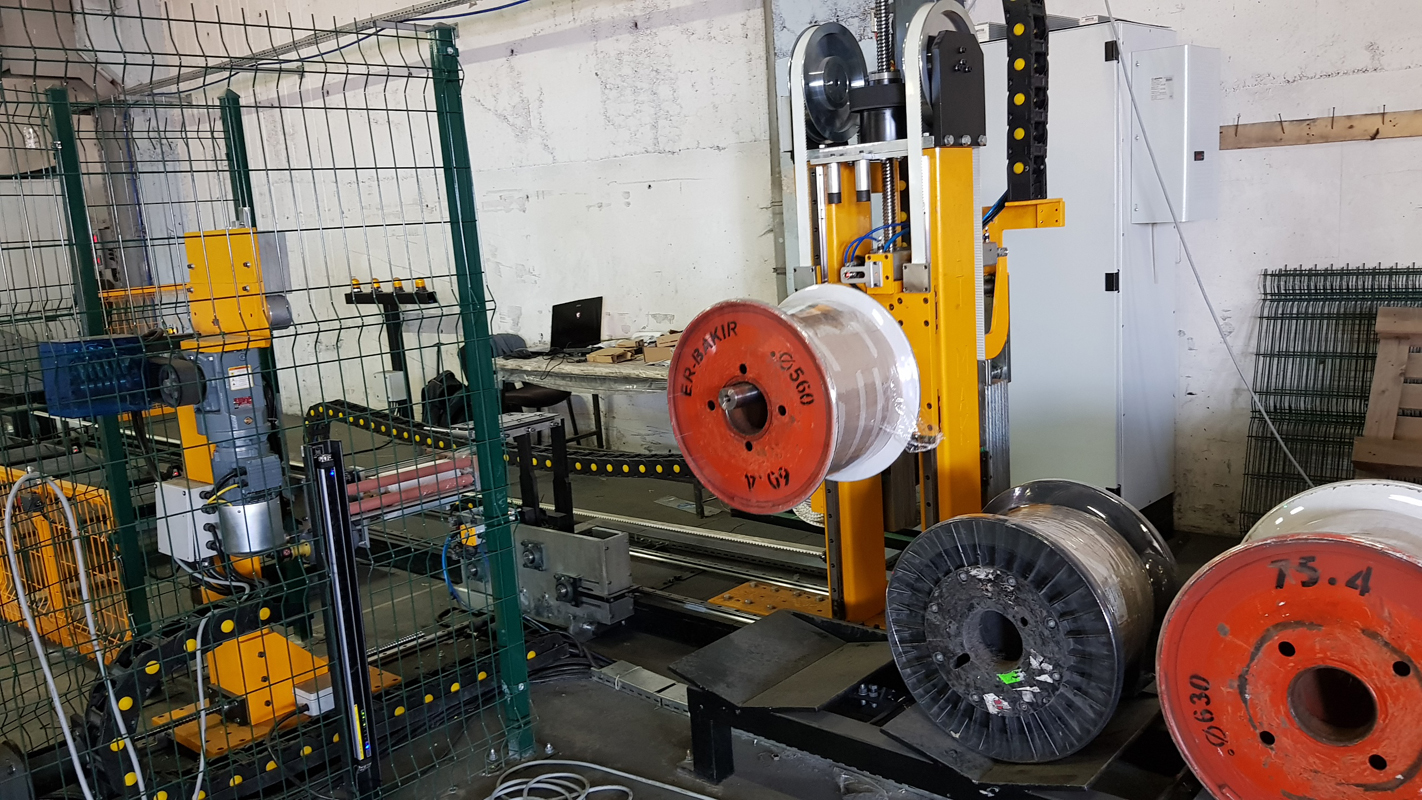

At first, spools are released to the platform by the forklift after that the robotic arm automatically lifts the spool from its position and then quality control of the spools is done by operatör at quality control and weight measurement station. If the spool is unsuitable, robot arm moves it to the inappropriate place and leaves to the spool there.

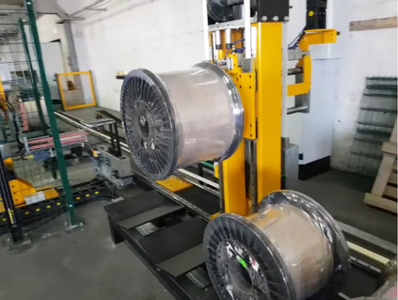

After the spool is automatically weighed, packaging process starts out. It is packed and labelled depending on the size of the spool and the spool is moves to the platform with the robotic arm.
Easy setup
Easy Cleaning and Maintenance
Easy to use
